Blitz 45

Trailed Sprayer

sprayheads available

Accessories available

The trailed low volume sprayer model Blitz 45, with pneumatic atomization based on the "Venturi Tube" principle, performs chemical treatments with a low volume of water.
Compact and of great manouvrability,is versatile and reliable as the whole range of CIMA's sprayers.
Maximum performance with low operating costs and low maintenance.

Specifications  - Equipment ONLY FOR EC REGULATION

  • 600-800 and 1000lt. main tank in polyethylene equipped with gratuated level indicator
  • Polyethylene spray-line rinsing tank placed below the main tank (gives the machine an excellent stability)
  • 30lt. hand-washing tank
  • Hydraulic pre-mixer incorporated within the basket filter
  • Two agitation systems, liquid and air
  • C.I.M.A.'S centrifugal pump (no diaphrams or valves) made of anticorrosive material and requiring no maintenance.
  • Pressure regulator with manual control and Ø 100mm pressure gauge (0÷6 atm)
  • Spraying ON/OFF control by remote control electro-valves from tractor seat
  • Rotating calibration discs, 15 positions - delivery from 70 to 3400 l/h
  • Steel high pressure radial fan with fan disengagement, polyethylene fan housing
  • Poly-V belt drive with automatic tensioner.
  • Overrunning clutch – safety stop device in the event the PTO is suddenly stopped
  • Steel frame, trail- eye drawbar adjustable in lenght and height, electrostatic painted with polyester powder.
  • Wheel-hubs adjustable in width and height, electrostatic painted with polyester powder

Technical information



Tractor Minimum required power 33 kW – 45 hp
Sprayer Absorbed power 17 kW – 23 hp
Fan 450 mm. dia.steel closed radial fan  4500 rpm – air delivery 5400 m3/h – air speed 188 m/sec
Pump centrifugal spray and agitation CIMA CD 32 pump  4250 rpm – 140 lt./min delivery – 4,5 kg/cm² max pressure

Values can vary according to the used distribution sprayhead



  600 lt. 800 lt. 1000 lt. "narrow" 1000 lt.
length 299-343 cm 327-371 cm 321-361 cm 327-371 cm
width 109-135 cm 109-135 cm 139-181 cm 113-139 cm
height 133-145 cm 140-152 cm 141-153 cm 154-166 cm
weight 375 kg 386 kg 434 kg 409 kg
tyres 7.00-12 7.00-12
10/80-12 (opt.)
10/80-12 10/80-12

The value are indicative only and may vary depending on the configuration of the machine.

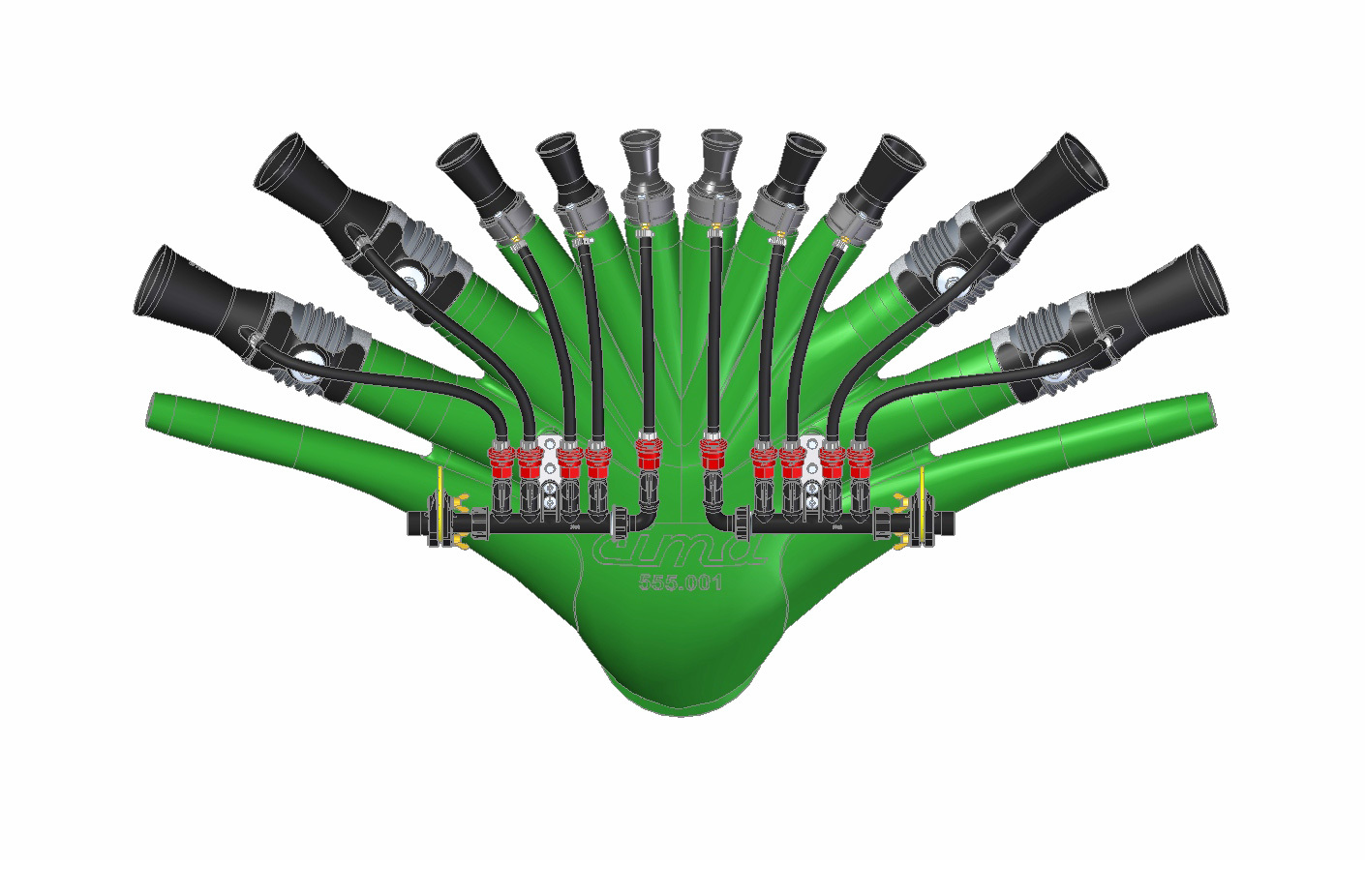

Sprayheads


Accessories

  • Hydro-mixer
  • Cardan shaft
  • d.175 collar
  • Pair of wheels "tandem axle"
  • D.175 hydraulical swivelling device
  • 4 electrovalve control unit
  • EPA Kit
    Details
  • Rear light kit
  • Electro-cylinder kit
  • Hydraulic-cylinder kit
  • Container washing device
  • Spray-line rinsing tank
  • Steering drawbars
  • Filling pipe with foot valve and filter
